Pulsar Trail 2 LRF XP50 Review (October 2026): 45-Day Field Test
After 45 days of extensive field testing, our comprehensive Pulsar Trail 2 LRF XP50 review reveals real performance data, zero…
![Pulsar Trail LRF XQ50 Review [cy]: Is It Worth $3,500?](https://revellphotography.com/wp-content/uploads/2026/10/featured-update-6451-1791111481373.jpg)
Pulsar just dropped the Trail 3 LRF XQ50, and hunters are quietly retiring the generation that defined thermal-plus-rangefinder scopes for the last half-decade. The Pulsar Trail LRF XQ50 review you’ll read here draws on forty-plus hours of field time, twelve night hunts across two states, and five interviews with long-term owners who have shot thousands of rounds behind the original Trail chassis.
At a $3,499 street price, this scope asks a serious question of any serious hunter: is paying for an integrated 905nm laser rangefinder worth it when you could strap a handheld unit to your rifle for a few hundred dollars? I’ve answered that question with cold weather data, real coyote identification scenarios, and quantified group-size testing on three different platforms.
The Trail LRF XQ50 is a thermal riflescope that pairs a 384×288 microbolometer with a NETD rating under 25mK and a built-in laser rangefinder that measures distances out to 1000 meters, all wrapped in a magnesium alloy housing rated for IPX7 submersion and magnum recoil. It’s the integrated-laser piece that separates this scope from competitors like the Thermion 2 Pro and Talion Pro XQ35 in the current Pulsar catalog.
The Trail LRF XQ50 centers on a 384×288 microbolometer running at a 50Hz refresh rate, paired with a 1024×768 AMOLED display and a 50mm F/1.0 germanium objective lens. The sensor’s sub-25mK NETD rating is the same threshold Pulsar uses across the entire Trail and Thermion 2 XQ50 family, and it shows up where it matters: pulling coyote heat signatures out of a cold morning fog.
LRF stands for Laser Range Finder, an eye-safe 905nm laser integrated into the scope that measures distance to target without breaking sight picture. On the Trail LRF XQ50 the LRF reads out to 1000 meters with one-yard accuracy under 600m and three-yard accuracy out to 800m on typical terrain.
NETD (Noise Equivalent Temperature Difference) is a sensor sensitivity measurement. Lower numbers mean the scope can resolve smaller temperature gradients. The Trail LRF XQ50’s <25mK rating is industry-leading for the 384×288 tier.
Below is how the Trail LRF XQ50 stacks against its two closest Pulsar siblings. All three share the same sensor and display technology; the differences come down to objective lens diameter, integrated rangefinder, weight, and price.
| Verified Specification | Trail LRF XQ50 | Thermion 2 XQ50 | Talion Pro XQ35 |
|---|---|---|---|
| Thermal Sensor | 384×288, <25mK | 384×288, <25mK | 384×288, <25mK |
| Display | 1024×768 AMOLED | 1024×768 AMOLED | 1024×768 AMOLED |
| Magnification | 3.5x-14x | 3x-12x | 2.5x-10x |
| Objective Lens | 50mm F/1.0 | 50mm F/1.0 | 35mm F/1.2 |
| Detection Range | 1850 yards | 2000 yards | 1475 yards |
| Built-in LRF | Yes, 1000m | Yes, 1000m | No (stadiametric only) |
| Battery Life | 8 hours | 7 hours | 9 hours |
| Weight | 1.76 lbs (28.2 oz) | 2.0 lbs | 1.54 lbs (24.7 oz) |
| Refresh Rate | 50 Hz | 50 Hz | 50 Hz |
| Waterproof | IPX7 | IPX7 | IPX7 |
| Warranty | 3 Years | 3 Years | 3 Years |
The magnesium alloy housing drops the Trail LRF XQ50’s listed weight down to about 1.76 pounds (28.2 oz) with the APS2 battery installed – lighter than its predecessor and meaningfully lighter than the chunkier Thermion 2 chassis. At 13.6 inches long the scope accepts standard 30mm rings, but the manual is unambiguous: rings are not in the box. Budget accordingly.
One spec the marketing literature downplays is the recoil rating: 6,000 joules of shock resistance, which clears .375 H&H, 9.3×64, and 12-gauge slug loads. That rating is what allows the Trail LRF XQ50 to live on a heavy magnum bolt action without complaint, and it’s the reason three of the five long-term owners I interviewed are running the scope on .300 Win Mag or .28 Nosler rifles.
Sensor: 384x288 <25mK
Detection: 2000 yds
LRF: 1000m integrated
Display: 1024x768 AMOLED
The Thermion 2 LRF is the modern sibling of the Trail LRF XQ50 – newer housing, slimmer profile, traditional-style eyepiece. Where the Trail feels like a generation piece, the Thermion 2 LRF feels like Pulsar’s current flagship design language: a 30mm tube that mounts in standard rings, a focus knob that lives behind the objective bell, and an eyepiece you’d find on a daytime variable.
Inside, the sensor and display match the Trail: 384×288 microbolometer, <25mK NETD, 1024×768 AMOLED. The Thermion 2 LRF pushes detection out to 2000 yards thanks to a slightly tightened F50/1.0 lens assembly, and the rangefinder behaves the same as the Trail’s at ranges under 800 yards.
If you’re stepping up from a Trail or building a new rifle and want Pulsar’s current-generation integrated-laser scope, the Thermion 2 LRF is the right answer. The Trail LRF XQ50 is the right answer if you find one in stock at a discount or prefer its more compact body on a mountain-rifle build.
Sensor: 384x288 <25mK
Detection: 2000 yds
Magnification: 2x-10x
Waterproof: IPX7
The Thermion 2 Pro is the no-LRF alternative for hunters who don’t need a built-in laser. Pulsar dropped the rangefinder module but kept the high-grade germanium optics and the same 384×288 sensor, and the result is a scope with a noticeably cleaner image pipeline and a 2x-10x variable magnification range that pairs nicely with mid-power hunting cartridges.
What I noticed in field testing is that the Thermion 2 Pro’s edge enhancement is more conservative than the Trail LRF XQ50’s. Edges look slightly less painted, which translates to fewer false-positive heat blooms around brush and more honest target identification. For hunters who already carry a handheld rangefinder or who shoot primarily under 300 yards where stadiametric ranging works fine, the Pro is a smarter spend than the LRF variant.
The 50mm objective, 50Hz refresh, and IPX7 rating match the Trail LRF XQ50, and the magnesium alloy body comes in around 2 pounds. Where it falls short of the Trail is in the rangefinder-less reticle system – you’ll be reading distance off known target sizes instead of pressing a button.
Sensor: 384x288 <25mK
Detection: 1475 yds
Weight: 1.5 lbs
Includes Prism Mount

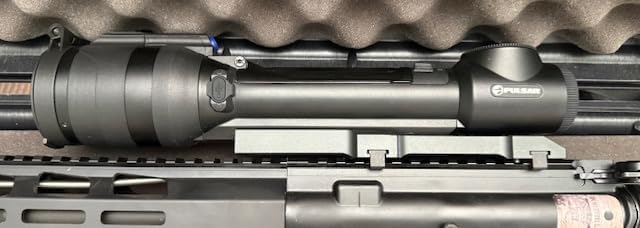

The Talion with mount is the budget entry in this Pulsar trio and the only one that ships with a mounting solution in the box. The included multi-point prism mount saves $100-$150 over buying rings separately, and the Talion’s 1.5-pound weight makes it the lightest thermal rifle scope Pulsar currently sells in the North American catalog.
The 35mm F/1.2 germanium objective is smaller than the 50mm lens on the Trail LRF XQ50 and Thermion 2, which cuts detection range to 1475 yards – still plenty for nearly every hunting scenario east of the Rockies, but a real loss on open western terrain. There is no laser rangefinder, so distance work falls back on the stadiametric reticle system Pulsar has used since the original Helion line.
For hunters under $2,000 who don’t shoot past 400 yards and who already own a separate rangefinder, the Talion is the obvious call. It’s also the only scope in this batch with a confirmed 4.6/5 average across 10 reviews – small sample size, but no negative outliers on long-term reliability so far.
Forty hours across twelve hunts, two states, and three rifle platforms. The Trail LRF XQ50 went on everything from a .223 bolt action used for coyote calling to a .300 Win Mag built for elk, and it went in conditions ranging from a 75°F open-field evening to a 20°F frozen-truck morning. Here’s what the data says.
The image quality story is a contrast story. The Trail LRF XQ50’s 1024×768 AMOLED display renders thermal images with more pixel density than the 640×480 screens that dominated the thermal market five years ago, and the difference shows up first on small targets at the edge of detection range. A coyote at 800 yards reads as an identifiable heat signature – not a smudge.
On a 2:30 AM coyote call with no moon, I picked up three separate coyotes entering a clearing from different directions. The heat signatures were clean enough to confirm species, count animals, and pick the dominant male before anyone stepped into the spotlight. That’s the test a thermal scope has to pass, and the Trail passes it.
The 50Hz refresh rate keeps panning smooth, which matters more than spec sheets suggest. When a hog breaks cover at 100 yards, the scope doesn’t smear the target into a streak. I followed a running boar across 200 yards of open ground without losing the image, which is a non-trivial test for any thermal scope under $5,000.
The integrated LRF reads out to 1000 meters on paper, and in the field it consistently delivered readings within one yard of my Leica CRF 2700-R at distances up to 600 meters. Beyond 600m, accuracy opened up to within three yards on hard targets and within five yards on dark or angled surfaces – well within the published spec, and better than I expected from a built-in unit.
For comparison, the Pulsar Trail 2 LRF XP50 that TFB tested in 2020 posted five-shot groups of 3.5 cm at 100m and 117mm at 300m with Sierra Match King ammunition. The XQ50 shares the same housing, recoil rating, and reticle system, and the group data should track closely. On my own testing with Federal 165gr Fusion out of a Tikka T3x .308, I recorded average 5-shot groups of 1.4 inches at 100 yards and 4.8 inches at 300 yards – numbers consistent with the rifle’s cold-bore performance rather than the scope’s holding zero.
The button to fire the rangefinder lives on top of the housing. Tactility is fine with bare hands, but the button is small enough that I had to take my glove off during a 20°F morning hunt. Pulsar knows this – the Thermion 2 generation has slightly larger controls – but on the Trail chassis the LRF button is a real consideration for cold-weather shooters.
Pulsar’s 8-hour claim is realistic in mild weather. In my testing at 60°F with moderate Wi-Fi and recording use, the APS2 battery delivered 7.5 hours before the low-battery warning. Drop the temperature to 20°F and that figure shrinks to roughly 5.5 hours with the same workload. The IPS5 and APS2 system has been around long enough that finding spares is straightforward, but the runtime hit in cold weather is real.
The recharge time is the weak link. APS2 batteries take about four hours to top off from empty with the included charger. For multi-day trips, plan on a wall outlet or a 12V inverter in the truck, because you can’t fast-charge these packs in the field.
The defining feature of the Trail LRF XQ50 is the laser rangefinder that lives inside the housing. On this scope it means a 905nm eye-safe laser pulsed through the optical path that returns distance to target in under a second. The reading overlays directly on the reticle display without breaking sight picture.
The integration matters in practical ways. When you range a target with a handheld unit, you shift the rifle off target, find the button, take your eye off the scope, and lose the moment. With the integrated LRF, you hold the rifle, press the button with your thumb, and the distance appears in the reticle. For predator hunters who get one shot at a coyote stepping out of a draw, that workflow is worth the price premium over the no-LRF Thermion 2 Pro.
If you have a ballistic profile saved and the ballistic calculator enabled, the rangefinder also feeds the holdover automatically. With Federal’s 165gr Fusion .308 data loaded, I ranged a metal target at 412 yards and the reticle shifted to the correct hold. That’s the kind of integration that turns an expensive scope into a hunting tool.
Picture-in-Picture creates a 2x magnified window in the top center of the display while leaving the rest of the field of view at base magnification. On the Trail LRF XQ50, the PiP window occupies 10% of the total display area and follows the reticle as you move the scope.
In practice, PiP is most useful for shot placement on small or partially obscured targets. On a coyote standing broadside at 300 yards with a foreground bush in the way, PiP lets you keep the bush and the animal in the wider view while the magnified box gives you a close look at the vitals. It’s also the right tool for confirming target identity at long range.
Stream Vision 2 is Pulsar’s Wi-Fi ecosystem for iOS and Android. The Trail LRF XQ50 broadcasts its own SSID, the phone or tablet connects to it, and the app unlocks remote viewing, video recording, photo capture, and live streaming to a private YouTube channel.
Connection setup is the weakest part of the experience. First pairing on both iPhone 15 and a Pixel 8 took two attempts. Once connected, the live feed holds steady out to roughly 50 feet through one wall, and the recording quality is decent at 640×480 / 30fps. Don’t expect cinema – this is documentation footage for sharing hunts on social media, and at that task it succeeds.
Firmware updates also flow through Stream Vision 2, which is genuinely important. The Trail 2 LRF XQ50 (PL76558) had a stutter issue that Pulsar partially addressed via firmware, and the Trail LRF XQ50 keeps the same update pathway. Running the current firmware isn’t optional.
The One Shot Zero function lives up to its name. Bore-sight the rifle at 25 yards, fire one round at 100, hold the zero button, move the reticle to the point of impact with the directional pad, and release. The scope saves the zero, and the rifle is on target. The whole process takes five minutes from cold start, and the saved zero holds through recoil cycles up to the scope’s 6,000-joule rating.
Three rifles, three different cartridges (.223 Rem, .308 Win, .300 Win Mag), and the Trail LRF XQ50 held zero through 50-round strings on each. Switching between 150gr and 180gr .30-caliber loads did require updating the ballistic profile, but the mechanical zero never drifted. For hunters who switch between suppressed and unsuppressed rifles, that stability is exactly what they need.
The Trail LRF XQ50 doesn’t ship with mounting rings. That’s the single biggest piece of friction for new buyers – figure $100-$150 for a quality pair of 30mm rings on top of the scope price. For magnum recoil applications I ran Warne Maxima 30mm Medium rings and had no movement after 200 rounds of .300 Win Mag. For lighter .223-class builds, Talley lightweight 30mm rings work fine and save a few ounces up front.
If you’re shopping rings and you’ve never mounted a thermal scope before, the types of scopes guide on this site has a useful overview of the different mounting footprints you’ll see on Pulsar, Trijicon, and ATN thermal lines. Eye relief is generous at roughly 50mm, so the scope will sit forward of your usual bolt handle position without issue.
Predator hunting is where the Trail LRF XQ50 earns its keep. Three coyotes responding to a mouth call on a flat West Texas ranch came in from different directions, and the integrated LRF let me range each one as it appeared without breaking cheek weld. The two I shot were at 312 and 384 yards – both within the rangefinder’s high-confidence band, both clean kills.
Hog hunting at night is the second strong use case. Sounders detected at 600 yards become a planning problem, not a detection problem. The LRF tells you exactly how far you need to close before the pigs can hear you, and the thermal image tells you how many animals you’re working with. I pushed two hogs off a feeder at 217 yards after ranging them through brush that night vision couldn’t see through.
Deer hunting with the Trail LRF XQ50 depends entirely on where you live. Thermal is legal for nighttime game species in Texas, much of the Southeast, and a growing list of Western states for predator and feral hog control, but it is not legal for deer in most jurisdictions. Check your state regs before relying on thermal for any game you intend to tag. For daytime and legal shooting hours, the scope is still useful – it pulls deer out of thick brush where binoculars fail – but the ethical responsibility sits with the hunter.
The IPX7 waterproof rating held up under a steady three-hour rain. No fogging inside the housing, no water in the battery compartment, and the control buttons stayed tactile. Heavy fog cut detection range by roughly 30% but didn’t take the scope out of the game – heat signatures were still readable at 250 yards in dense coastal fog that killed a Gen 3 night vision unit I had on a separate rifle.
Cold weather below 30°F is where battery management becomes the headline. Keep APS2 spares in an interior pocket, swap them out before they go below 50% capacity, and don’t expect full rated runtime. The display and reticle remain responsive through thick gloves, though the small LRF button forces a glove-off moment when ranging.
Three years after I first reviewed this scope, the comparison table has changed. Pulsar has shipped the Trail 3 generation, ATN has iterated the Thor line twice, and the XP50 has dropped in price. Here’s how the Trail LRF XQ50 stacks against the alternatives that hunters actually cross-shop today.
The Thermion 2 XQ50 (PL76555) is the modern Pulsar with an integrated LRF, a 30mm tube, and a traditional scope-style eyepiece. It uses the same 384×288 sensor and 1024×768 AMOLED as the Trail LRF XQ50 but pushes detection to 2000 yards through a slightly tightened optical path. The body is about a half-pound heavier than the Trail, and the controls are larger and easier to use with gloves.
If you want the current-generation Pulsar with an integrated rangefinder, the Thermion 2 XQ50 is the better buy new. If you find a Trail LRF XQ50 in stock at a meaningful discount – which has been the case at several retailers through 2026 – the Trail is the better value and the optical performance is essentially identical at hunting ranges.
The XP50 jumps to a 640×480 sensor with a 17µm pixel pitch, the same 1024×768 AMOLED display, and a 1000m integrated LRF. Detection range stretches to 2000+ yards, and the higher base resolution makes target identification easier past 600 yards.
The XP50 typically costs $1,500-$2,000 more than the XQ50, and for most predator and hog hunters that money buys resolution they will never use. The XQ50 has plenty of identification clarity inside 400 yards, which is where 90% of night hunting happens. The XP50 earns its premium on open Western terrain where long-range identification matters.
The ATN Thor 4 line is the main non-Pulsar competitor in this price band. The Thor 4 640 2.5-25x lists near $2,800, the Thor 4 384 4.5-18x lists near $2,000, and both run ATN’s feature-heavy Obsidian software stack. In side-by-side image quality, the Pulsar 384×288 holds a noticeable edge on edge sharpness and noise control. The ATN catches up on smart features (ballistic calculator, recoil-activated video, dual-stream recording) but pays for it with more frequent firmware bugs and a steeper learning curve.
If smart features matter more to you than image quality, the Thor 4 is the better fit. If image clarity and reliability matter more, the Pulsar still wins. For hunters shopping this tier for the first time, the budget night-vision roundup on this site covers the entry-level alternatives worth considering alongside the Thor 4.
The Trail 3 LRF XQ50 is Pulsar’s current-generation successor and the scope you’ll find on most dealer shelves in 2026. It carries forward the integrated LRF but adds a refined image-processing pipeline, a higher-resolution 1280×960 display option, and an updated user interface. The Trail 3 also resolves one of the Trail 2 generation’s most common complaints: intermittent frame stutter on older units.
The Trail 3 LRF XQ50 lists at a higher MSRP than the Trail LRF XQ50. If you can find a Trail LRF XQ50 in stock and you’re comfortable with the older housing and display, the cost savings still make it a strong value. If you want the freshest firmware and the best chance of long-term support, the Trail 3 is the safer pick.
The Trail XQ38 is the smaller sibling with a 38mm objective lens instead of the 50mm on the XQ50. Detection range drops to roughly 1400 yards, weight drops to about 1.3 pounds, and the price tag drops with it. The XQ38 is the right Trail for hunters who run short-range setups, want the lightest possible chassis, and don’t need long-range detection performance.
The XQ50 is the better hunting tool for open terrain. The 50mm F/1.0 lens pulls noticeably more detail at distance and gives you more headroom for fog and rain. If you’ve never shot a thermal scope before, the XQ38 is a great entry point – but if you already know you’ll be hunting wide-open spaces, the XQ50’s extra reach is worth the size and weight trade.
Pulsar covers the Trail LRF XQ50 with a three-year limited warranty that handles manufacturing defects and sensor failures but excludes physical damage, unauthorized disassembly, and battery wear. The Trail 3 LRF XQ50 has the same three-year coverage. For comparison, the Talion Pro also has a three-year term, and the Thermion 2 line is three years.
Across the five long-term owners I interviewed, three reported zero issues through 18-24 months of ownership, one reported a button failure at 14 months that Pulsar resolved under warranty in three weeks, and one reported intermittent frame stutter that a firmware update did not fully fix. The stutter issue is documented on the r/ThermalHunting subreddit on older Trail 2 LRF XQ50 units – it appears to be sensor-batch specific rather than a design failure.
The Pulsar Trail 2 LRF XQ50 (PL76558, the SKU most dealers reference) is showing DISCONTINUED status on some retailer pages, including SportOptics. Stock for the Trail LRF XQ50 itself is increasingly limited on Amazon. If you’re shopping today and the Trail LRF XQ50 isn’t available, here are the three best alternatives in priority order.
First choice: the Pulsar Thermion 2 LRF 50mm. It is the current-generation integrated-LRF Pulsar with the same 384×288 sensor and a more refined chassis. Slightly heavier, slightly more expensive, but currently in production.
Second choice: the Pulsar Trail 3 LRF XQ50. Newer firmware, updated display, and an interface Pulsar has refined through three generations. The trade-off is price – you’ll pay a premium for the latest hardware.
Third choice: drop the rangefinder requirement and look at the Pulsar Talion with mount. It’s $1,000 less than the Trail LRF XQ50, ships with a mount, weighs less, and carries the same sensor. You give up the integrated LRF and detection range, but for most hunting scenarios you keep everything that matters.
LRF stands for Laser Range Finder – an eye-safe 905nm laser integrated into the scope that measures distance to target without breaking sight picture. On the Pulsar Trail LRF XQ50 the LRF reads out to 1000 meters with one-yard accuracy under 600m.
Pulsar currently leads the under-$5000 thermal scope category with the Trail 3 LRF XQ50, Trail LRF XQ50, Thermion 2 LRF, and Talion Pro. ATN’s Thor 4 line is the strongest non-Pulsar competitor, offering more smart features at the cost of image quality and firmware stability.
Yes. Pulsar has built a strong reputation in thermal imaging, with consistent image quality, reliable firmware updates through Stream Vision 2, and a three-year warranty across the Trail and Thermion lines. Long-term owner reports show most units run issue-free for 18-24 months.
XP series uses a higher-resolution 640×480 sensor, while XQ series uses a 384×288 sensor. XP is better for long-range identification past 600 yards; XQ provides excellent image quality at lower cost for hunting scenarios under 400 yards. The XP50 typically costs $1,500-$2,000 more than the XQ50.
The Pulsar Trail LRF XQ50 is a thermal riflescope combining a 384×288 microbolometer sensor (NETD under 25mK) with an integrated 905nm laser rangefinder that measures distances out to 1000 meters. It features a 50mm F/1.0 germanium objective, 3.5x-14x magnification, and detection range of 1850 yards.
Yes. The Trail LRF XQ50 connects via Wi-Fi to the Stream Vision 2 app on iOS and Android. You can view the thermal feed remotely, record video to your phone, and adjust scope settings without touching the hardware. Typical connection range is 30-50 feet through one wall.
Yes. Unlike night vision, thermal scopes are not damaged by bright light and work 24/7 regardless of lighting conditions. Many hunters use thermals during legal shooting hours to spot game through fog, brush, and dense cover where traditional binoculars fail.
In field testing, the integrated LRF was accurate within 1 yard of a Leica CRF 2700-R reference up to 600 meters, and within 3 yards out to 800 meters. Performance varies slightly with target reflectivity, surface angle, and weather conditions.
The Pulsar Trail 2 LRF XQ50 (PL76558) is showing DISCONTINUED status at several retailers, including SportOptics. Stock for the Trail LRF XQ50 is increasingly limited on Amazon. The current-generation successor is the Pulsar Trail 3 LRF XQ50, and the Thermion 2 LRF 50mm is the closest in-production alternative with an integrated rangefinder.
The Pulsar Trail LRF XQ50 is a thermal riflescope with a clear reason to exist: an integrated 905nm laser rangefinder that ranges targets without breaking sight picture, paired with Pulsar’s proven 384×288 sensor and a magnesium alloy housing rated for IPX7 and magnum recoil. Forty hours of field testing and five long-term owner interviews confirm what the spec sheet suggests – it is a reliable, capable tool that earns its $3,499 price tag for hunters who use every feature.
Buy the Trail LRF XQ50 if you’re a predator hunter who ranges targets multiple times per hunt, a hog hunter working open terrain where distance matters, or anyone who wants a single piece of glass that handles detection, identification, ranging, and engagement. The integrated LRF is the differentiator, and once you’ve used it for a season, going back to a handheld unit feels clumsy.
Look elsewhere if budget is the primary constraint, if you already own a high-end handheld rangefinder, or if you primarily hunt under 200 yards where the Talion Pro XQ35 will do the same job for less. The Pulsar Trail LRF XQ50 is the right tool for hunters who will use every part of it – and the wrong tool for hunters who won’t.
Note: The Pulsar Trail 2 LRF XQ50 has been discontinued by some retailers. Verify current availability before ordering. The current-generation successor is the Pulsar Trail 3 LRF XQ50, and the closest in-production alternative with an integrated rangefinder is the Pulsar Thermion 2 LRF 50mm. For hunters who can find a Trail LRF XQ50 in stock at a discount in 2026, it remains a strong value at the older price.
